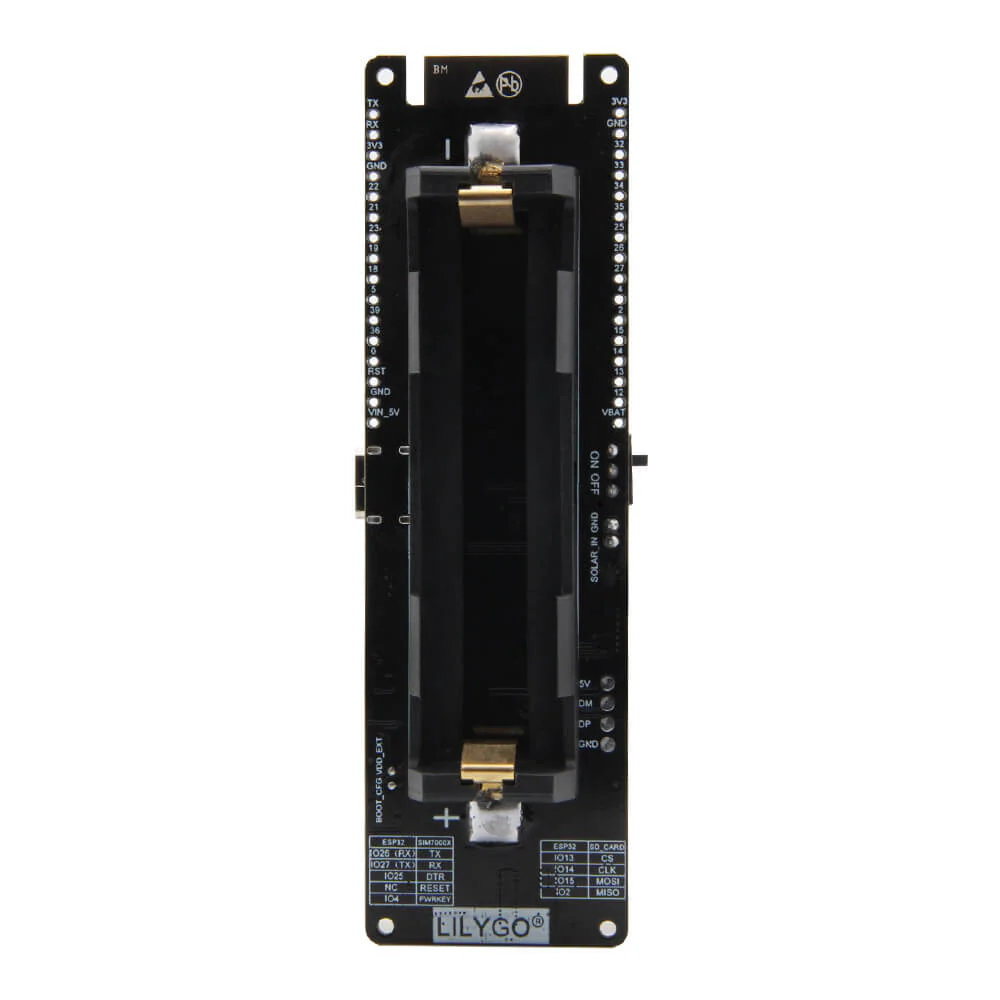

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9

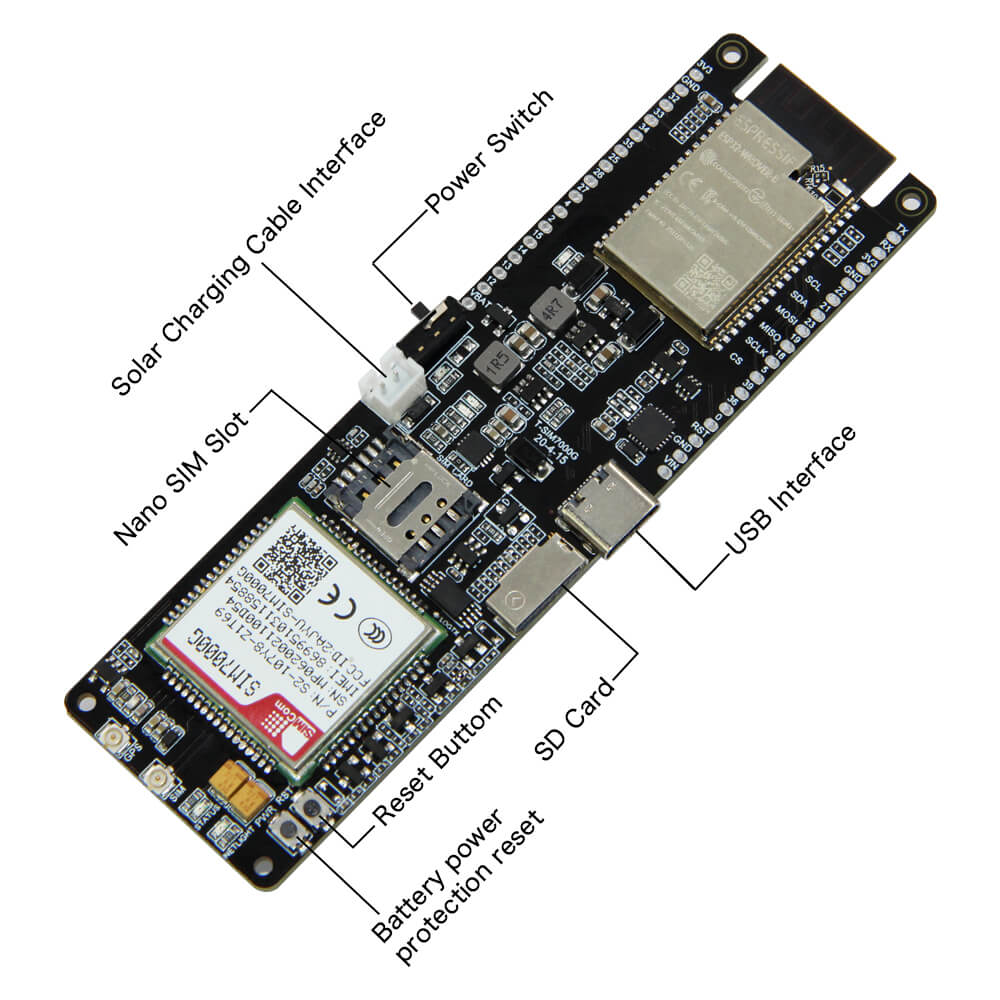

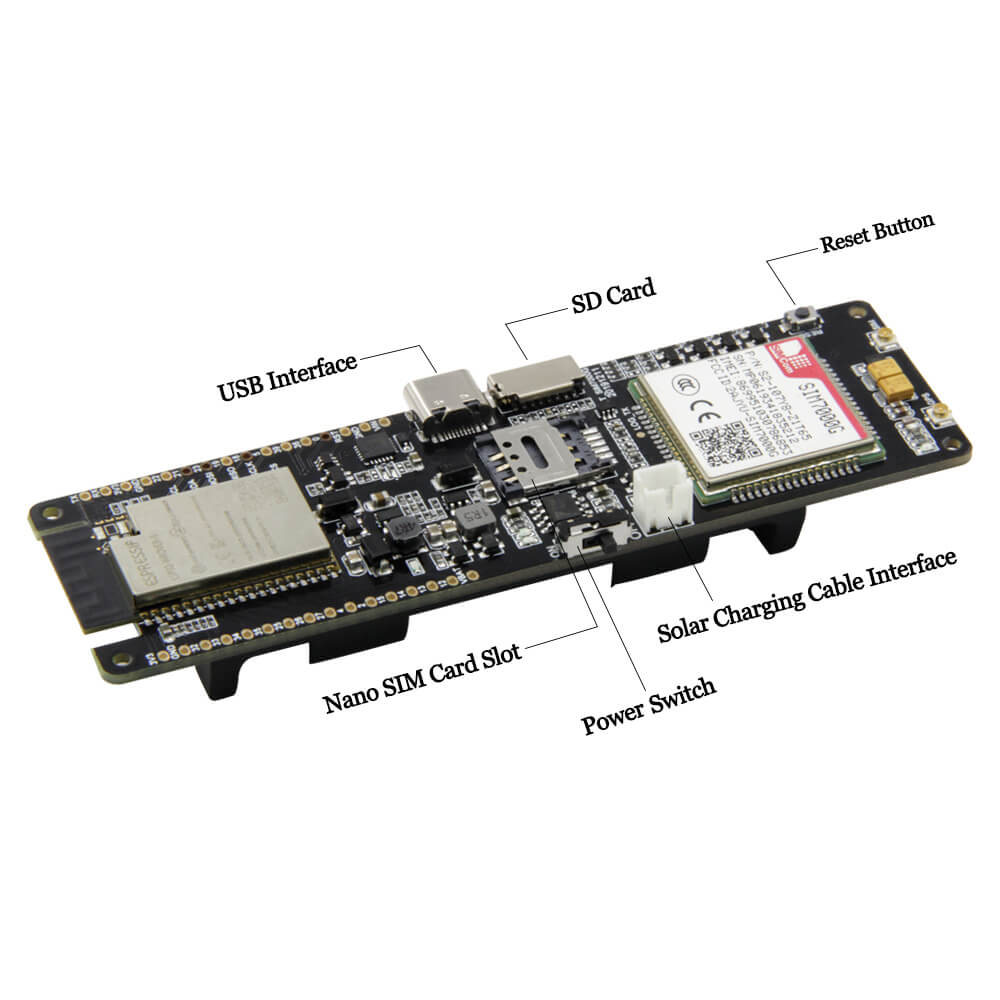

T-SIM7000G

 Specifications

MCU ESP32
Flash 4MB
PSRAM 8MB
Serial Chip CH9102
REGION Global
LTE&GSM SIM7000G
Wireless protocol

Wi-Fi + Bluetooth 4.2

3D WiFi antenna[Use by default]

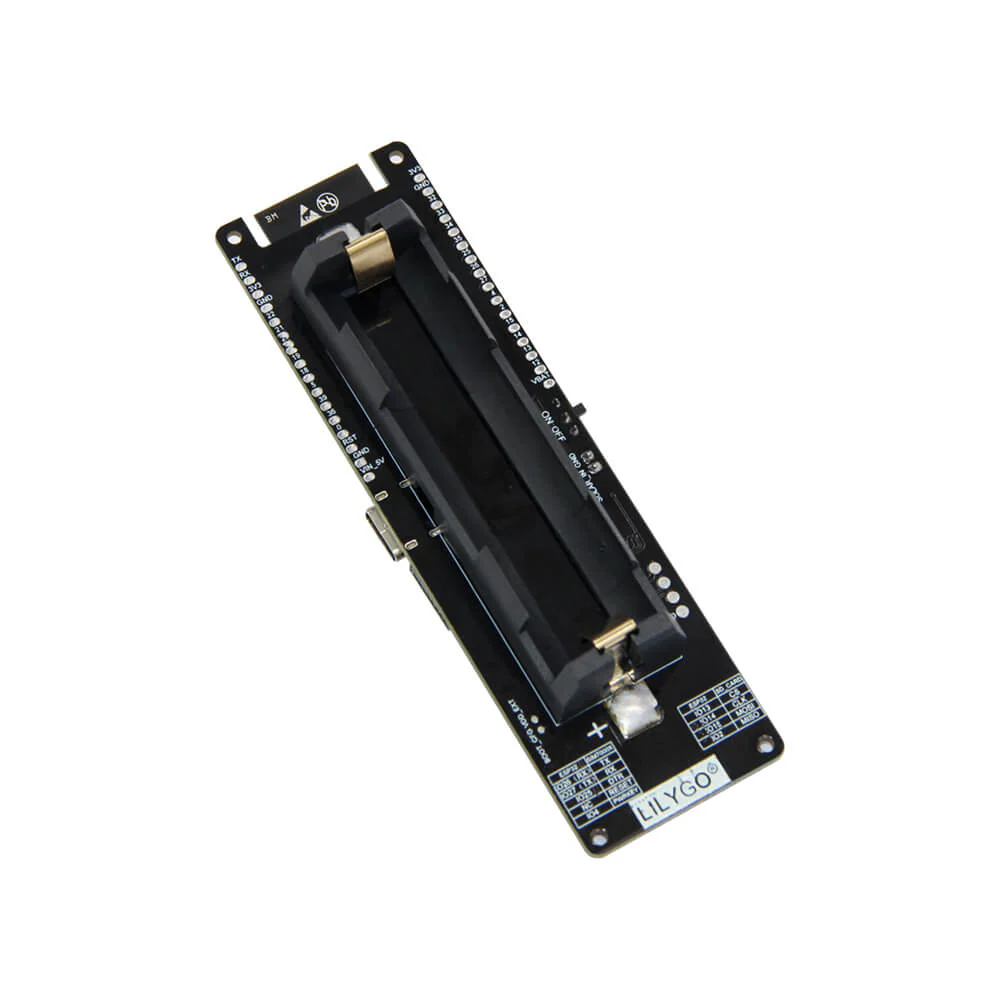

Power Supply Mode USB Type-C / 18650 battery holder / 2pin Solar charging cable interface
Support TF card , Nano SIM card[2G], GPS


SIM7000G

Item Specifications
Form Factor LCC+68PIN
REGION G: Global
Dimensions 24.0*24.0*2.6mm
Power Consumption TBD
Data Transfer
  • Download Speed: 10Mbps
  • Upload Speed: 5Mbps
GNSS Support
Protocol

TCP/IP/IPV4/IPV6

Multi-PDP/FTP/FTPS/HTTP

HTTPS/DNS/MQTT
Android RIL Android 5.0/6.0/7.0/8.0/9.0
USB Driver Microsoft Windows 7/8/10, Linux, Android
Supply Voltage 3.4~4.2V
SIM Card 1.8V/3.0V

Frequency Bands

 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/

B13B18/B19/B20/B25/B26/B28/B66

LTE-TDD: B34/B38/B39/B40/B41

Tech Support

ℹ️Product Information
Check out our GitHub repository for sample code and more detailed information about this board.

💻Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.


Technology Support [Github]

If you need technical support please check the link to find more details.

T-SIM7000G

1. Size

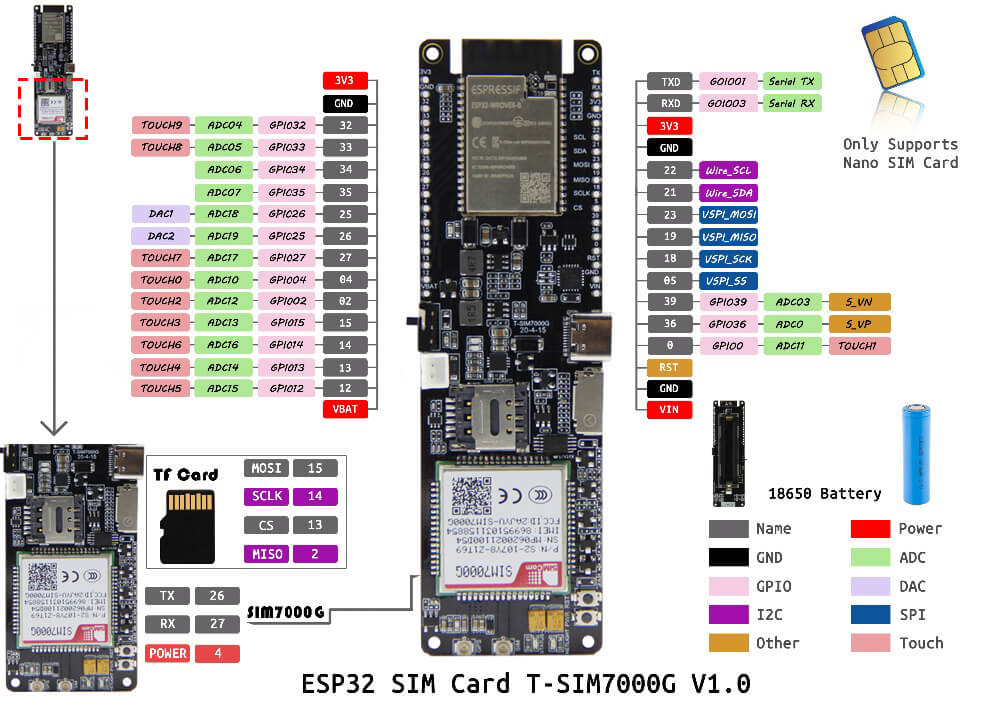

2. Pin Diagram

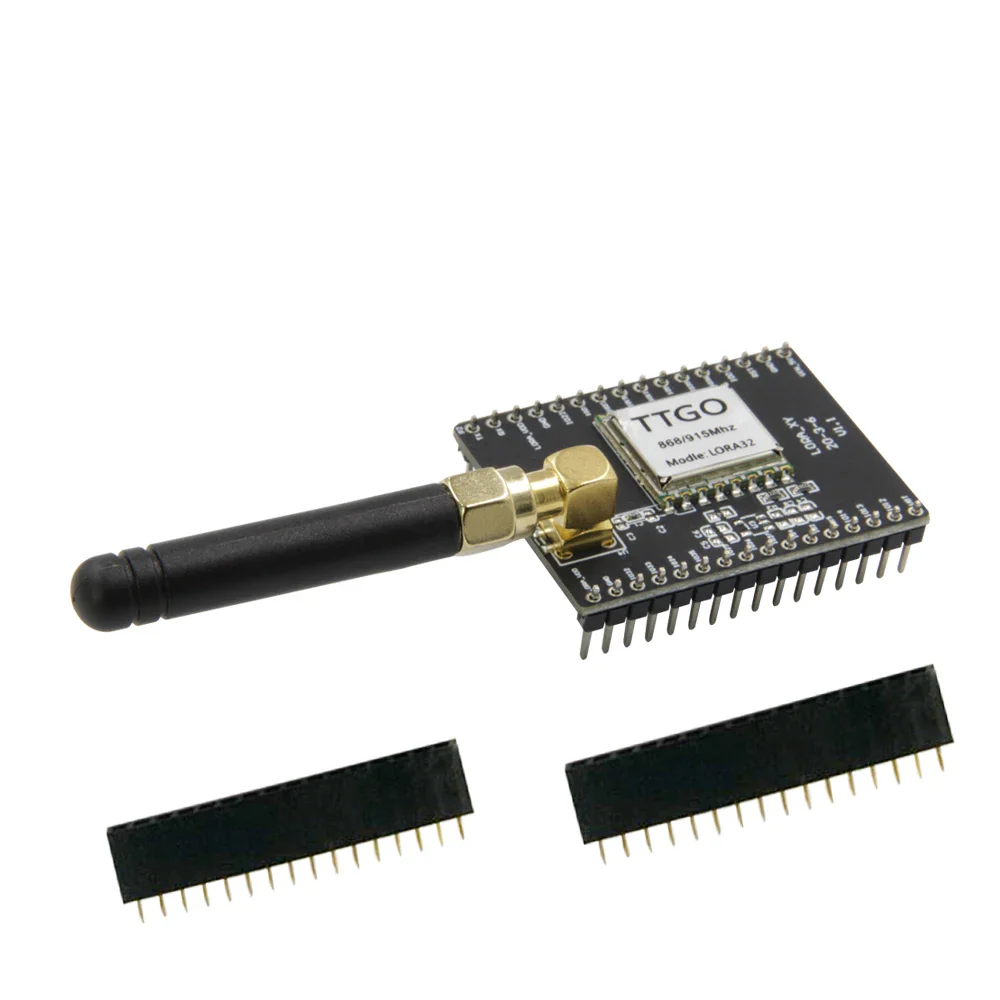

It can be used with Lora 868/915Mhz function Shield to send and receive data over a long distance with low power consumption[Product link will be updated here soon..].

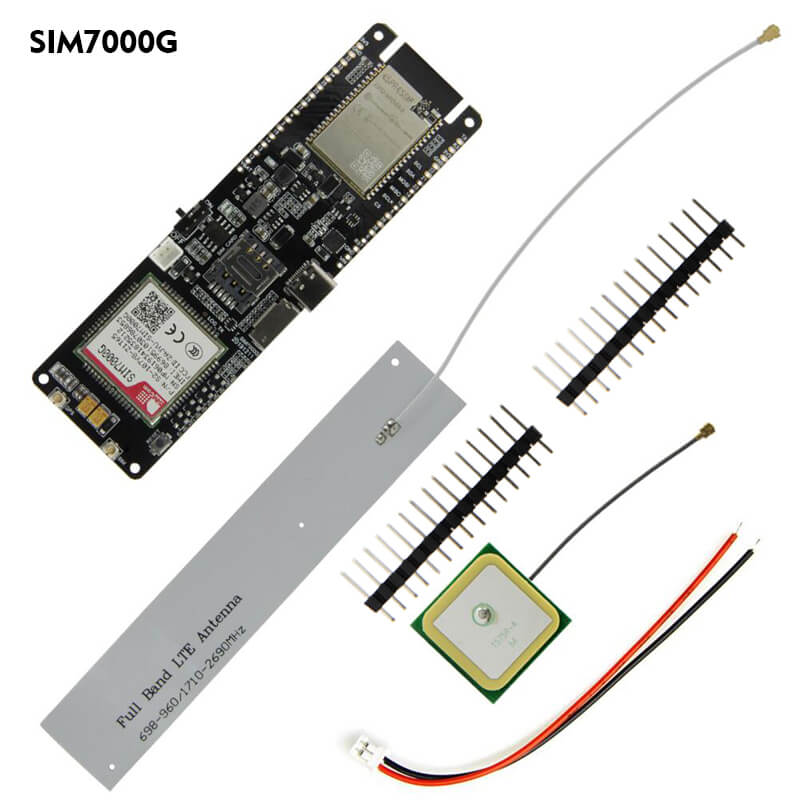

  • 1x T-SIM7000G

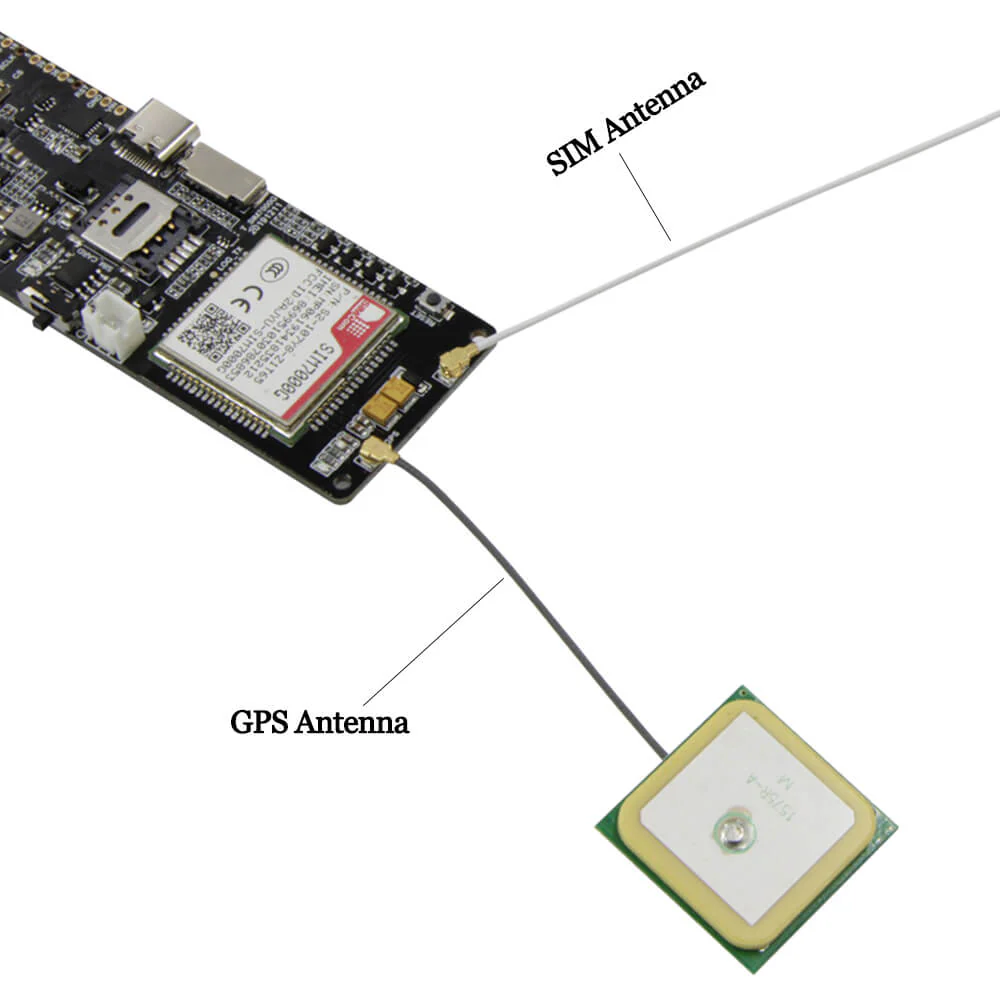

  • 1x SIM antenna
  • 1x GPS antenna
  • 1x Power cable
  • 2x Pin


(Notice: The shipping list does not include TF card and SIM card）
