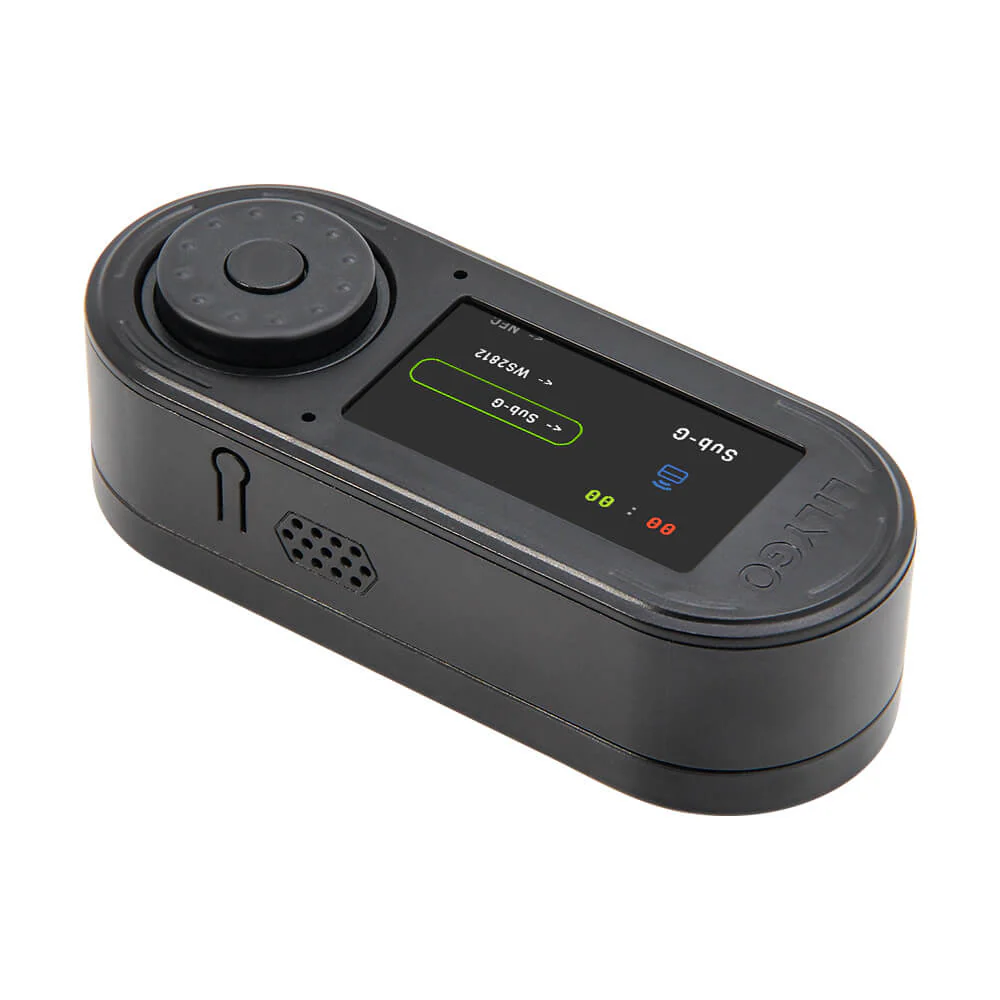

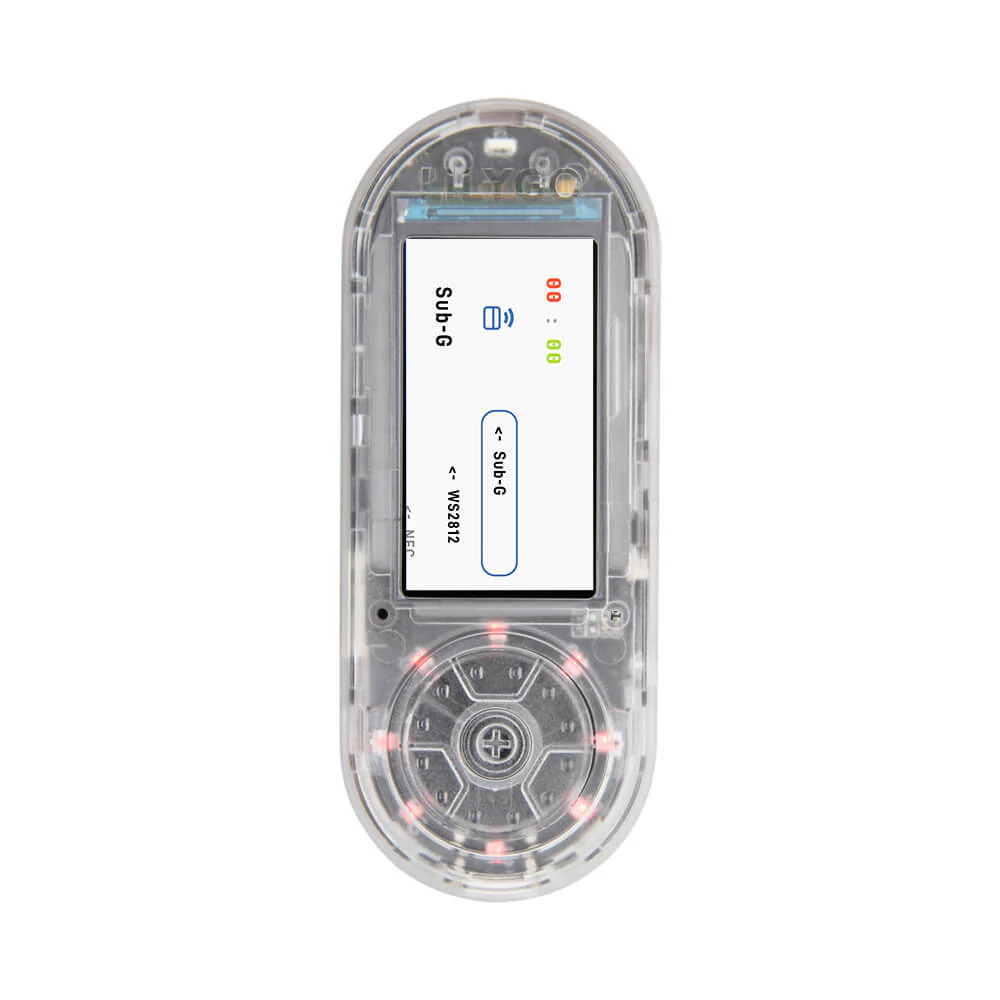

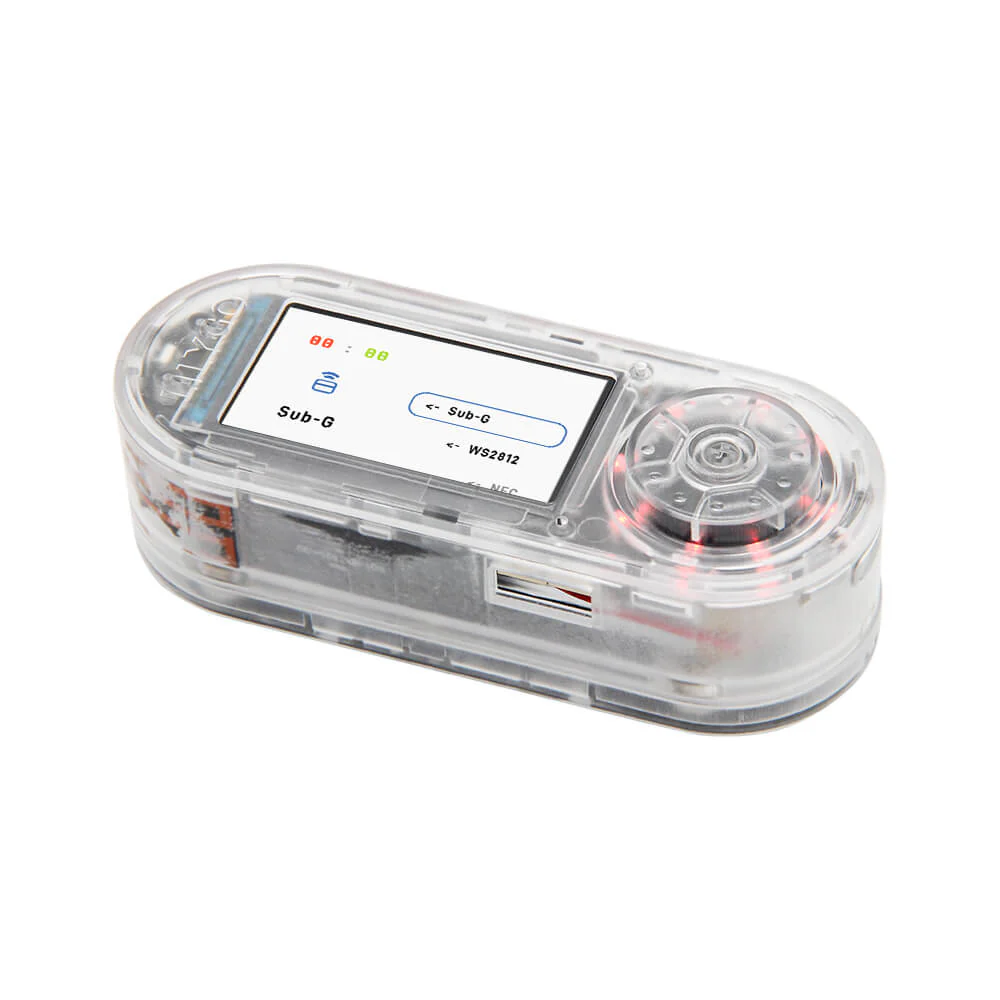

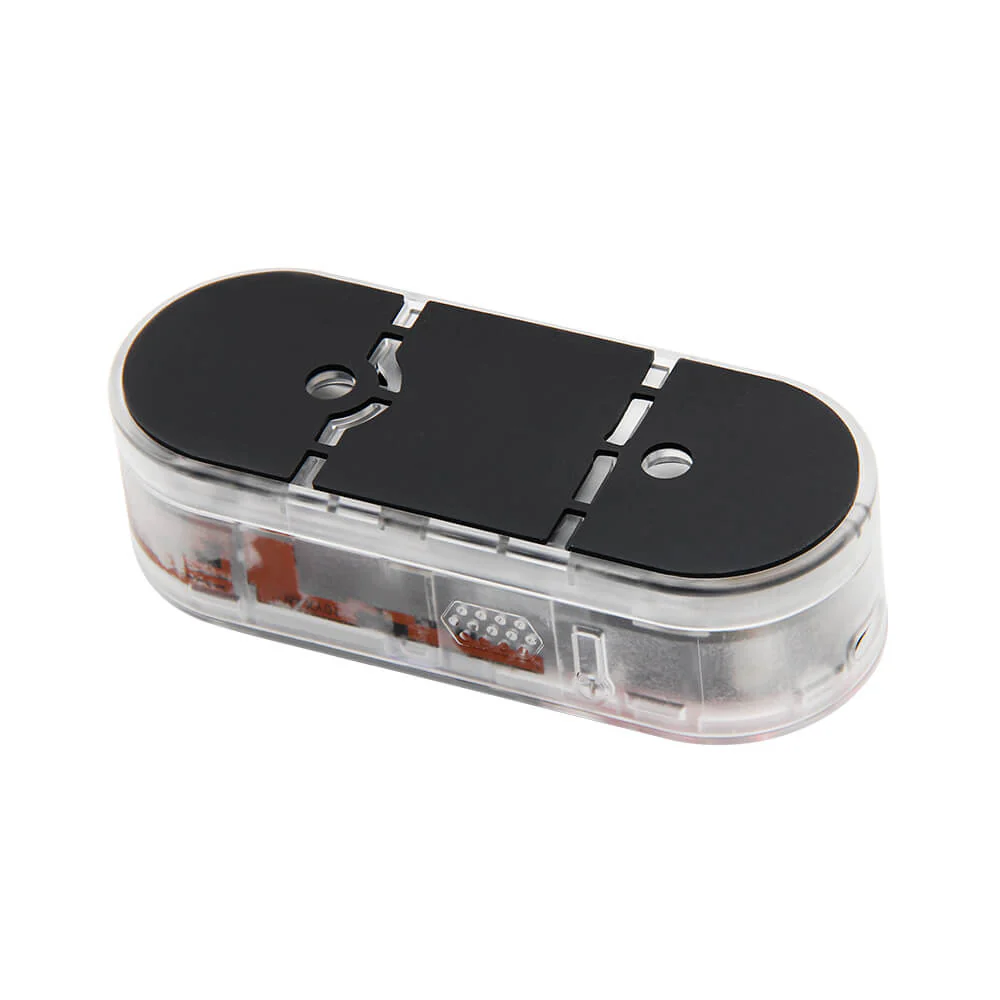

T-Embed CC1101

If you need the nRF24L01 module, please refer to the T-Embed CC1101 Plus.

Built-in Sub-GHz module based on a CC1101 transceiver and a radio antenna (the maximum range is 50 meters).

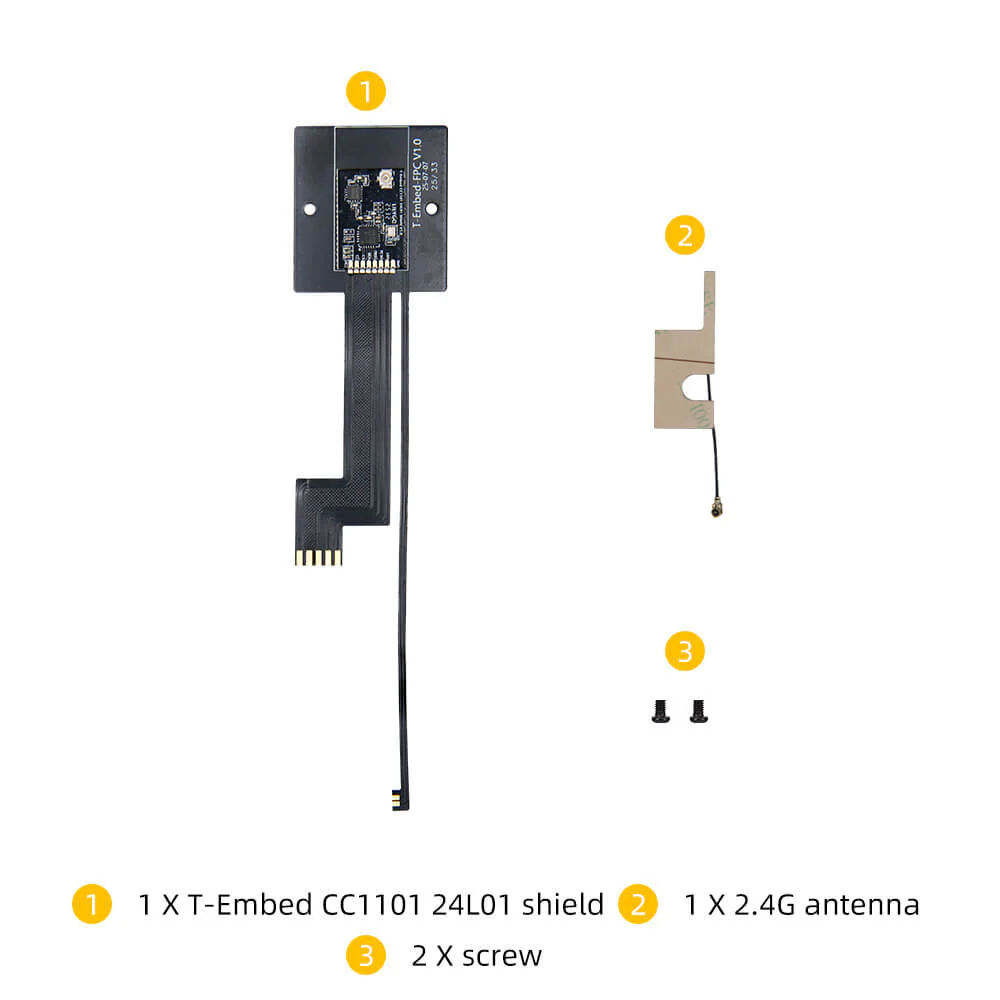

Upgrading the T-Embed CC1101 to a Plus Version with an NRF24L01 Expansion Module.

RFID: 13.56MHz (HF)

Both the CC1101 chip and the antenna are designed to operate at frequencies in the 300-348 MHz, 387-464 MHz, and 779-928 MHz bands.

Specifications

MCU	ESP32-S3 Dual-core LX7 microprocessor
Flash	16MB
Programming Platform	Arduino-ide、 ESP-IDF
RSRAM	8MB
Onboard functions	Reset + Boot Button , IR Transmit & Receive
Bat voltage detection	IO04
Wireless	Wi-Fi 802.11 b/g/n，BLE 5

1.9 inch ST7789V IPS color TFT LCD

Interface	SPI
Drive Chip	ST7789V
Resolution	170(H)RGBx 320(V)

--- Tech Support---

ℹ️Product Information Check out our GitHub repository for sample code and more detailed information about this board. 💻Technical support Visit our GitHub community, post a description of the problem and our engineers will help you directly.

What's In The Box

We do not recommend replacing the case, there is a high risk of damaging the unit and affecting the IR function.
